Technical Specifications:
Model | YCX-NVR6432G-P16 | |
System | Compression | Standard H.265 |
Main Processing Chip | ARM Cortex A17 | |
OS | Embedded Linux | |
Video | Network Access Bandwidth | 256Mbps |
Input Resolution | 8MP、5MP、4MP、3MP、1080P、960P、720P real time | |
Network Access | 16 CH IPC input | |
Output | HDMI×1:3840×2160/1920×1080/1280×1024/1024×768 VGA×1:1920×1080/1280×1024/1024×768 | |
Audio | Input | 32 CH IPC audio input |
2-way Audio | RCA×1 | |
Local Output | RCA×1 | |
Record | Resolution | 8MP、5MP、4MP、3MP、1080P、960P、720P |
Frame Rate | 25fps/30fps(PAL/NTSC） | |
Bite Stream | 32Kbps-12Mbps | |
Image Quality | 5 Level | |
Playback | Simultaneous Playback | Max 16 CH |

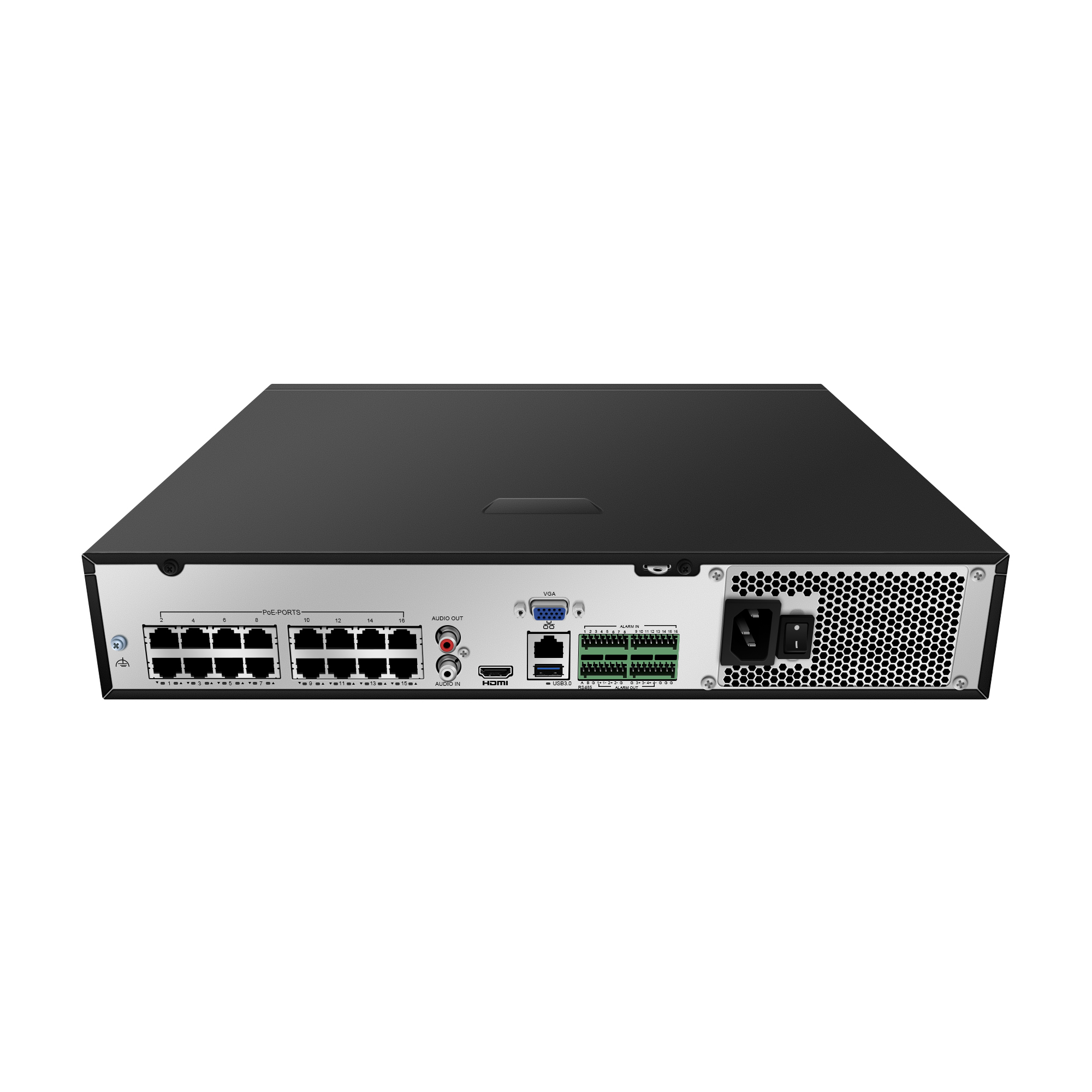

Network | Interface | RJ45 10/100/1000 Mbps × 1；RJ45×16（PoE Port） |
Network Protocol | TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181 | |
Storage | HDD | SATA×4 |
Max Capacity for 1 single HDD | 8T | |
Backup | USB Backup | Yes |
eSata Backup | No | |
Interface | Alarm In | 16 |
Alarm Output | 4 | |
Communication | RS485×2, connect to PTZ and keyboard | |
Remote | Optional | |

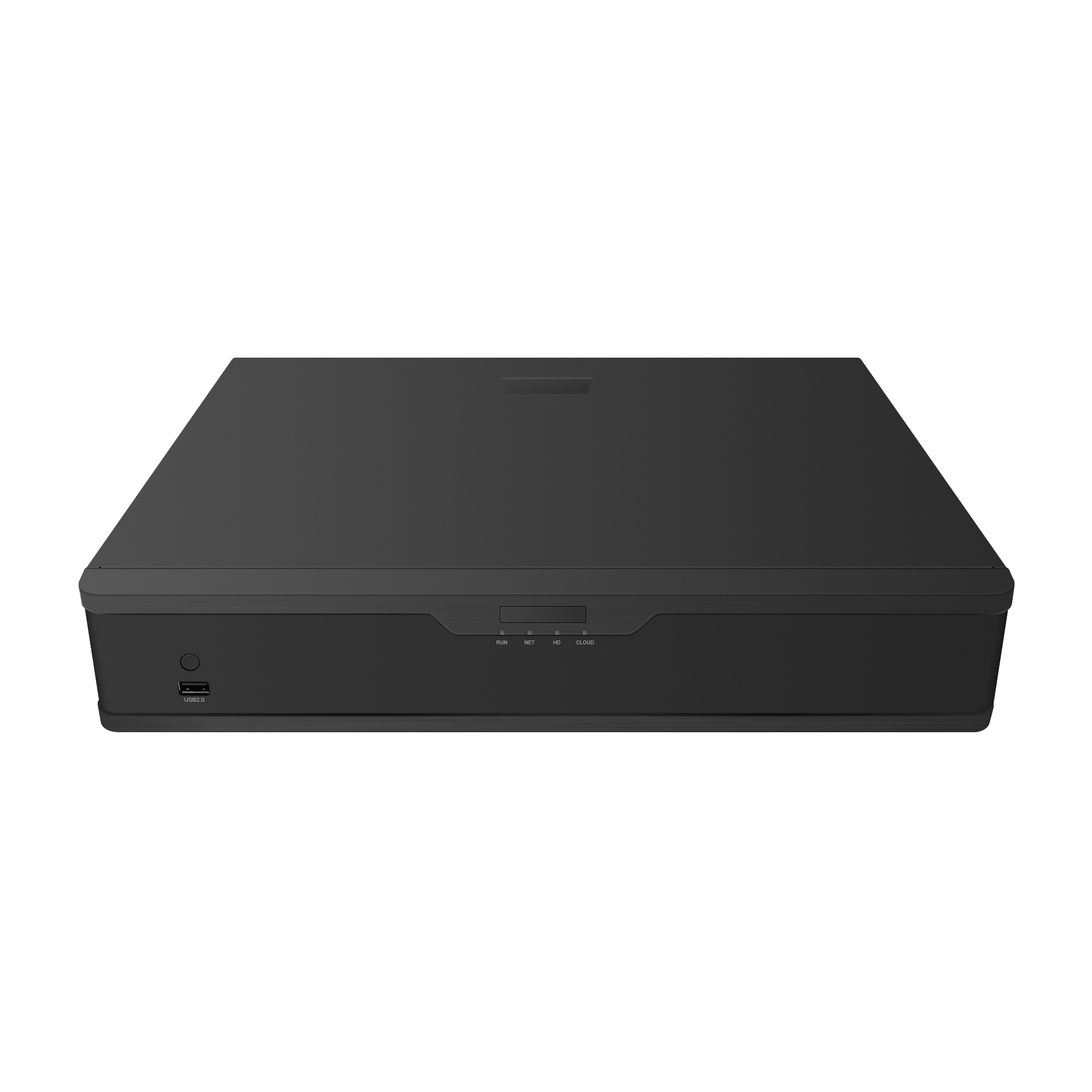

USB | USB2.0×1( front panel ), USB3.0×1( rear panel ) | |
Others | Case | 1.5U |
Dimensions(mm ) | 440×390×70(W×D×H) | |
Power Supply | ATX | |
Consumption | ≤ 30W ( without HDD ) | |
Work Environment | -10 ～ 50 ℃，10% ～ 90% humidity | |
