Model

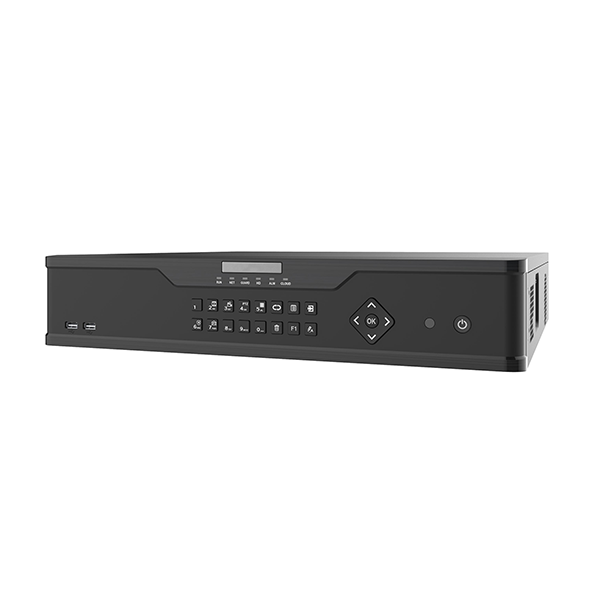

NVR3416-16P

Video/Audio Input

IP Video Input

16-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming Bandwidth

160Mbps

Outgoing Bandwidth

320Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA output

HDMI1/VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768

/60Hz HDMI2:

4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz,

1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

16-ch

Corridor Mode Screen

3/4/5/7/9/10/12/16

Decoding

Decoding format

Ultra 265, H.265, H.264

Live view/Playback

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, 32 x 960p@25

Hard Disk

SATA

4 SATA interfaces

Capacity

up to 10TB for each HDD

External Interface

Network Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface

Serial Interface

1 x RS485

USB Interface

Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0

Alarm In

16-ch

Alarm Out

4-ch

Power Output

12 VDC

PoE

Interface

16 independent 100 Mbps PoE network interfaces

Max Power

Max 30W for single port

Max 200W in total ( 12.5W for each )

Supported Standard

IEEE 802.3at

General

Power Supply

100 ~ 240 VAC

Power Consumption: ≤ 20 W( without HDD )

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

Dimensions(W×D×H)

442 mm× 425mm×86mm (17.4" × 16.7"×3.4" )

Weight ( without HDD )

≤ 5.24 Kg ( 11.55 lb )
