Model |
YC-NVR3104L
|
Video/Audio Input | |
IP Video Input | 4-ch (up to 6 after channel expansion) |
Network | |
Incoming Bandwidth | 64Mbps |
Outgoing Bandwidth | 48Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
HDMI/VGA Output | HDMI: 3480*2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Audio Output | 1-ch, RCA |
Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Synchronous Playback | 4-ch |
Corridor Mode Screen | 3/4 |
Decoding | |
Decoding format | Ultra 265/H.265/H.264 |
Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 1 x 4K@30,1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25,4 x 1080p@30 |
Hard Disk | |
SATA | 1 SATA interface |
Capacity | up to 6TB for each disk |
External Interface | |

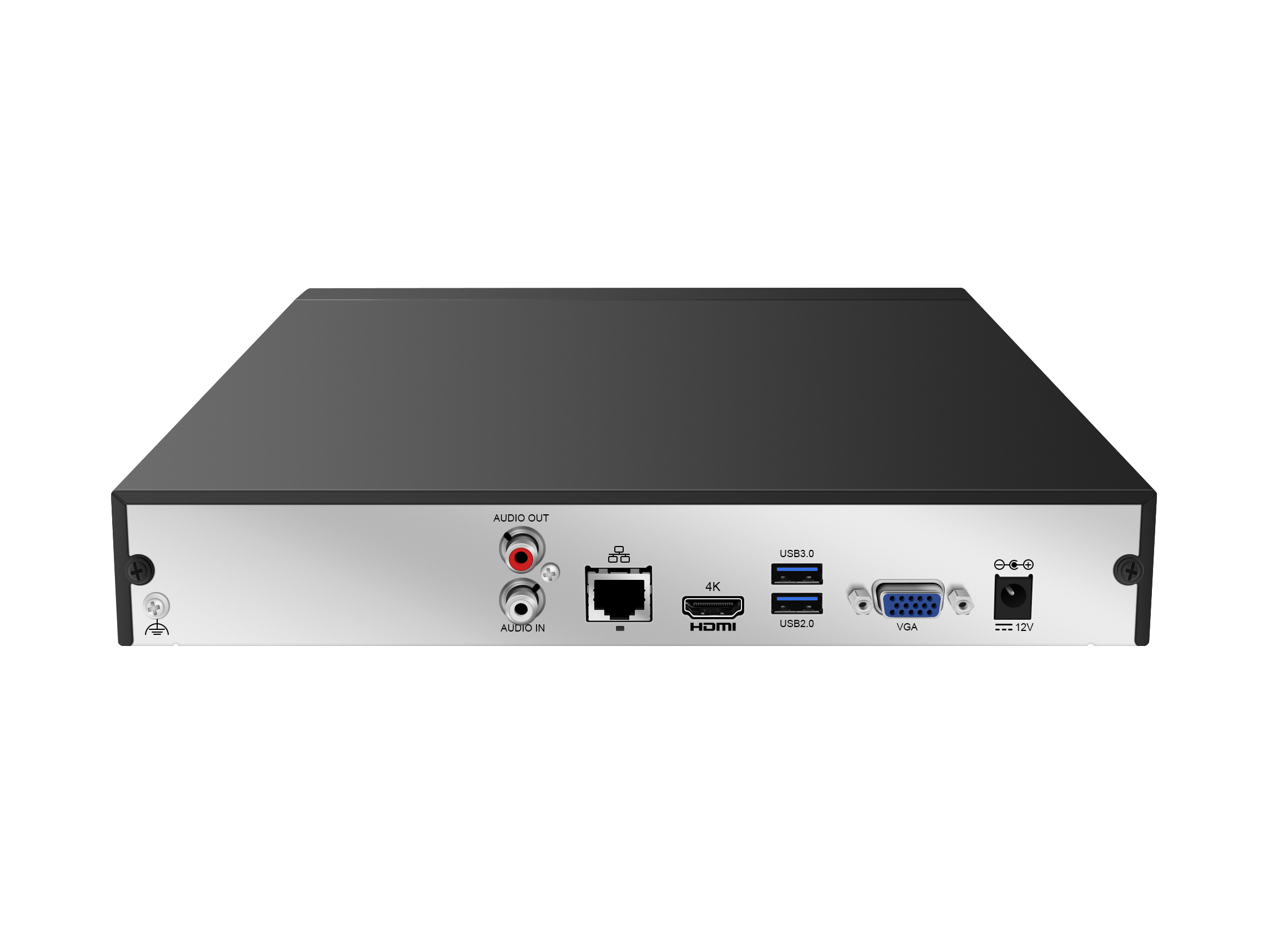

Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 2 x USB2.0 |
Supported Standard | IEEE 802.3at, IEEE 802.3af |
General | |
Power Supply | 12V DC Power Consumption: ≤9 W (without HDD) |
Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) | 260mm × 240mm × 46mm (10.2"×9.4"×1.8") |
Weight (without HDD) | ≤0.98kg (2.16 lb) |
